C Series
Material Choice
- Thickness of office partition of C series: 20mm, 32mm, 40mm,
50mm and 60mm.
- C series modern office cubicles adopts 1.2-2.0mm thick aluminum.

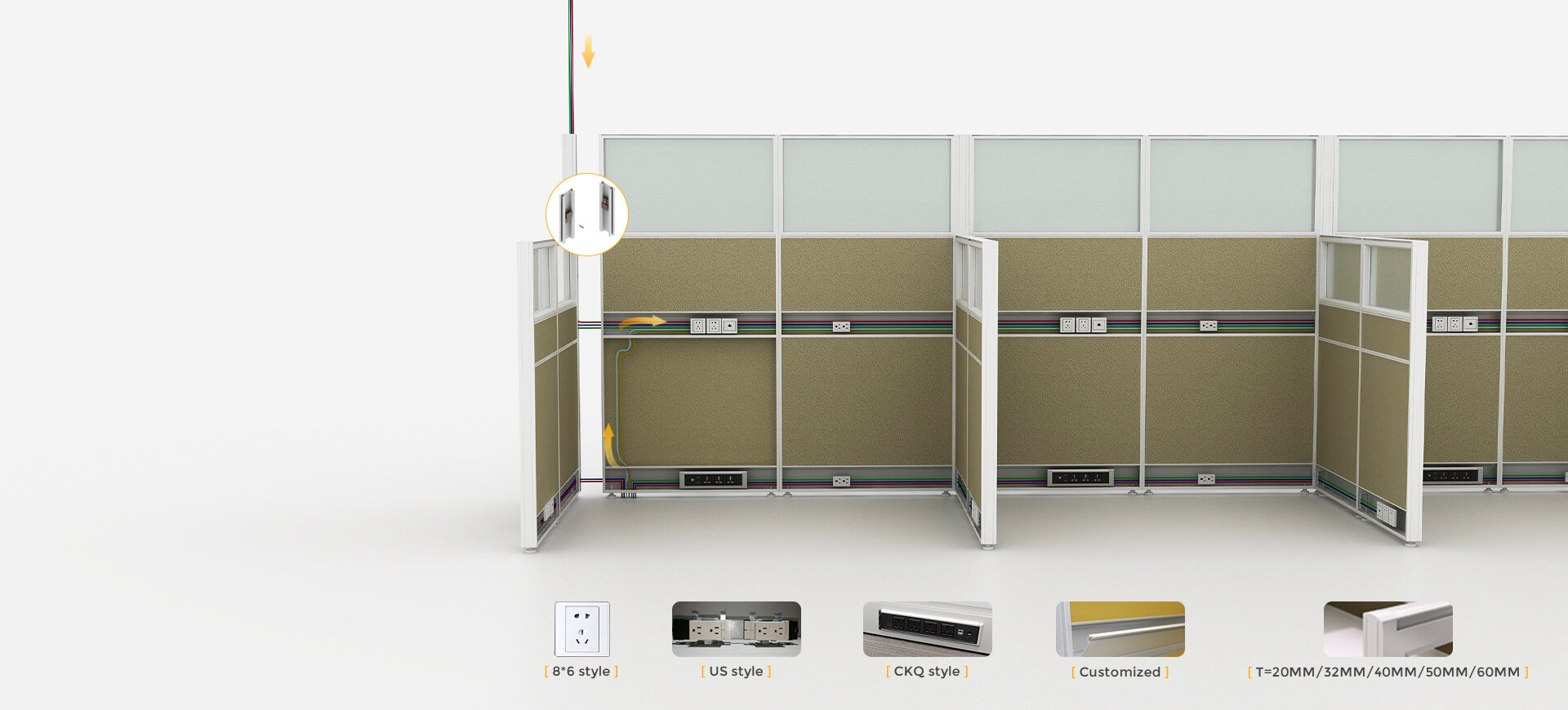

Electricity Wires Management
- We installed cable channel in the middle and bottom positions
of the partition to facilitate the staff to install the power cable
and data cable separately, so as to avoid the interference of
the magnetic field generated by the power cable to the data signal.
- The cable channel can be opened by turning up or down, and
can be taken out directly. The socket can be installed by
punching holes as required.
Power Supply Socket
- 86 type switch socket and American socket can be installed on
the cable channel to meet the power demand customization of
different countries.
- If the thickness of the partition is less than 40mm, we recommend
using 86 type switch socket to satisfy the aesthetic feeling and
ensure the safety of electricity use.
- The incoming wires of the partition can be arbitrarily routed from
the ground, wall and ceiling, and the internal wiring of the partition
can be interconnected between two layers of cable channel.
Simple Splicing
- Interlocking installation is adopted for splicing between screens.
Without any screws, the installation is convenient and fast.
Keep Level With The Ground
- The bottom of each partition is equipped with 2 adjustable feet to
solve the problem of uneven ground.
