full height partition wall

MW-HK85

HK85 glass partition wall

Contact Us

For changing office needs, modular office partitions provide flexibility for your business.

  • Wall Starter
  • Straight connection
  • Top groove
  • Blind
  • Bottom groove
  • Sliding door
  • Panel finish
  • Partition installation
glass partition design, clear glass partition wall, aluminum glass partition

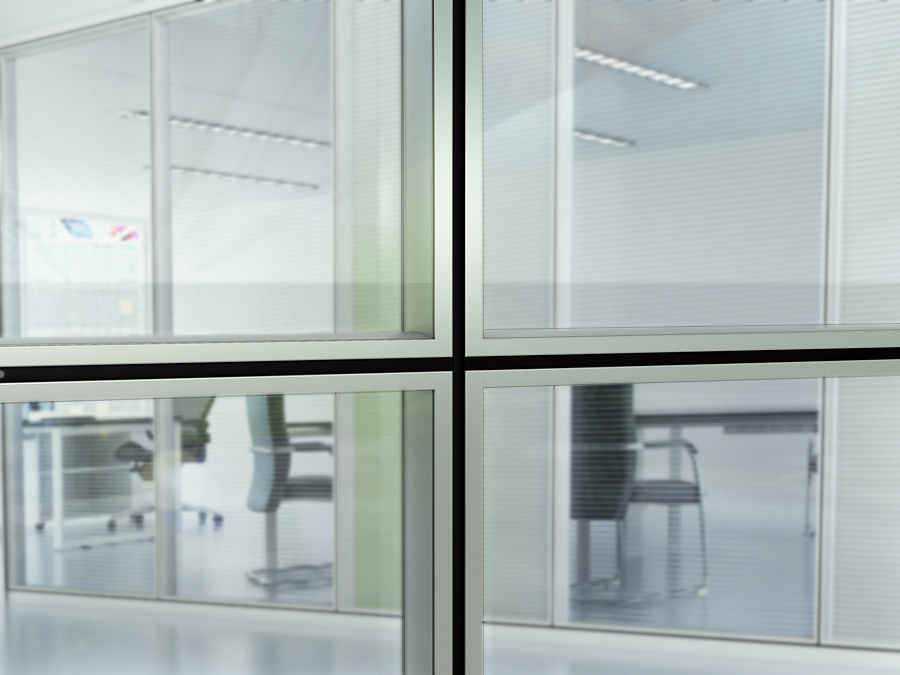

HK85 Series

Adjustment function

  • When we can't solve the problem that the ground and ceiling are not level and the wall is

not vertical, the HK85 glass partition wall has a 30mm adjustable range for the wall starter,

top groove, and bottom groove to solve the problem of uneven ground.



Design concept

  • As a choice of space division, HK85 not only meet the strong visual permeability, but also

meet the privacy needs. The materials with 85mm partition thickness and 3-8mm aluminum

thickness are used to make the whole high partition system present a more stable appearance.











glass partition design, clear glass partition wall, aluminum glass partition

Glass Finishes

Low-lron (Starphire) Glass

  • color: Transparent, blue edges
  • Pattern: None, strips, laser-cut shapes
  • Privacy: Low



Frosted Glass

  • color: Translucent
  • Pattern: None, strips, laser-cut shapes
  • Privacy: Medium, high



Clear Glass

  • color: Transparent, green edges
  • Pattern: None, strips, laser-cut shapes
  • Privacy: low



Tinted Glass

  • color: Available in bronze, grey, and green
  • Pattern: None, strips, laser-cut shapes
  • Privacy: Low, medium

Acoustic Performance

In terms of material selection, sound insulation seals and sealant strips allows high

partitions effectively reduce the noise by 35db, so as to ensure that your team can

work efficiently in a relatively quiet environment.

glass partition design, clear glass partition wall, aluminum glass partition

General Size Choice

  • Height range: 2100mm-3000mm
  • Width range: 450mm-3000mm
  • HK85 also supports module division. You can divide different modules

according to space requirements. You can choose horizontal or vertical

placement to achieve the best visual effect.

  • The module is installed by superposition. When one of the modules

needs to be replaced, it only needs to replace a single module without

disassembling the whole board.

glass partition design, clear glass partition wall, aluminum glass partition

Door System Choice

  • Sliding door
  • Swing door

In addition to different opening methods, the combination of triamine plate and glass is also an option.

glass partition design, clear glass partition wall, aluminum glass partition

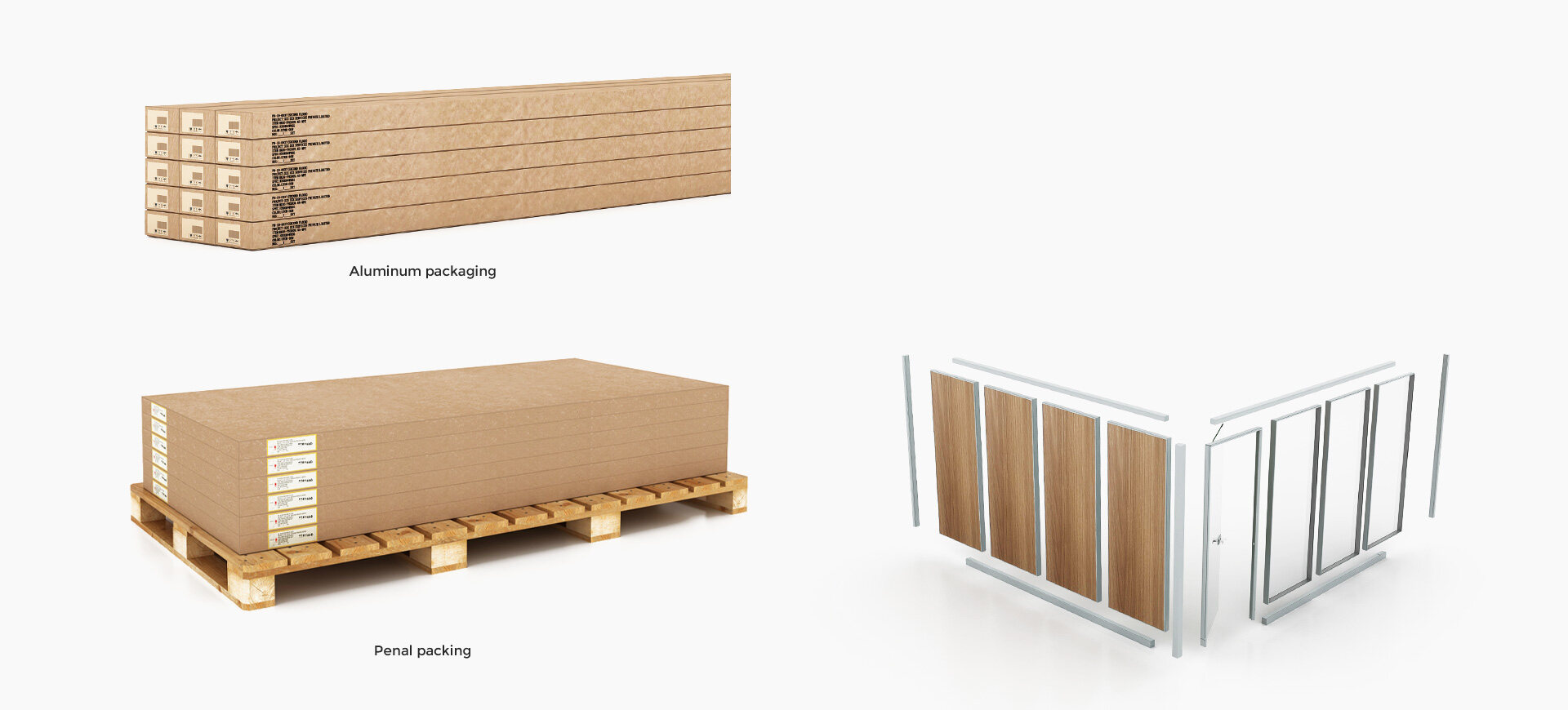

Packaging Logic

  • We pack the aluminum alloy frame and glass of HK85 together after installation. The basic information such as floor, area and product code will be displayed on the outside of each package to make the product easier to identify, load and unload.
  • Packaging pearl cotton, bubble wrap, corner protector, packaging foam strips and wooden planks are equipped inside the package to protect the product from damage caused by transportation.
glass partition design, clear glass partition wall, aluminum glass partition
